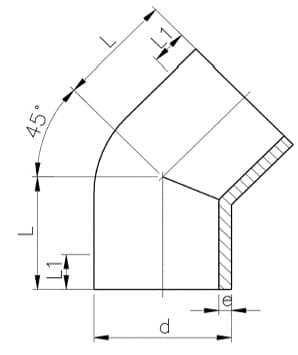

| Product Code | Name | d(mm) | PN(bar) | e(mm) | L(mm) | L1(mm) |
|---|---|---|---|---|---|---|
| 735158606 | PVDF 45 ° Elbow 1/2" | 20 | 16 | 1.9 | 32 | 25 |
| 735158607 | PVDF 45 ° Elbow 3/4" | 25 | 16 | 1.9 | 34 | 26 |
| 735158608 | PVDF 45 ° Elbow 1" | 32 | 16 | 2.4 | 36 | 26 |
| 735158609 | PVDF 45 ° Elbow 1-1/4" | 40 | 16 | 2.4 | 39 | 28 |
| 735158610 | PVDF 45 ° Elbow 1- 1/2" | 50 | 16 | 3 | 42 | 30 |
| 735158611 | PVDF 45 ° Elbow 2" | 63 | 16 | 3 | 47 | 31 |
