1029
PP HP Bend 90°
1/2"-2"

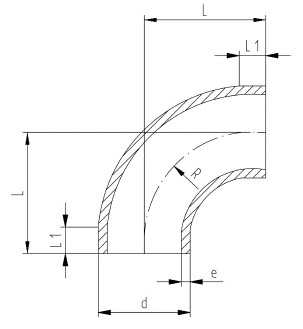

| id | name | d(mm) | PN(bar) | L(mm) | L1(mm) | R(mm) | e(mm) |
|---|---|---|---|---|---|---|---|
| 727018681 | PP HP Bend 90° 1/2" | 20 | 10 | 38 | 23 | 15 | 1.9 |
| 727018682 | PP HP Bend 90° 3/4" | 25 | 10 | 42 | 23 | 19 | 2.3 |
| 727018683 | PP HP Bend 90° 1" | 32 | 10 | 46 | 22 | 24 | 2.9 |
| 727018684 | PP HP Bend 90° 1-1/4" | 40 | 10 | 51 | 21 | 30 | 3.7 |
| 727018685 | PP HP Bend 90° 1- 1/2" | 50 | 10 | 58 | 21 | 37 | 4.6 |
| 727018686 | PP HP Bend 90° 2" | 63 | 10 | 66 | 21 | 45 | 5.8 |
